Using C-Kermit to connect to a DOS BBS

DOS BBSs typically use the DOS CP437 character set, while modern terminals use UTF-8. The line-drawing characters often used on a DOS BBS won’t show up properly on a terminal expecting UTF-8.

C-Kermit can translate live. It also supports the XModem, YModem, and ZModem protocols often used for file transfer by BBSs (you may need to install a package called lrzsz or rzsz to enable this.)

A single command enables character set translation in both directions:

SET TERMINAL CHARACTER-SET CP437 UTF8

How it works

  • SET TERMINAL CHARACTER-SET <remote-cs> [<local-cs>] sets the remote host’s character set and C-Kermit’s local character set. If two different sets are given, C-Kermit translates between them during CONNECT. By default both are TRANSPARENT and no translation happens.

  • CP437 is a first-class character set with its own glyph tables including line-drawing characters.

  • UTF-8 is likewise first-class (FC_UTF8, ckuxla.c:508).

  • Translation set by this command is bidirectional. Bytes received from the BBS (CP437) are converted to UTF-8 for display, and keystrokes typed locally (UTF-8) are converted to CP437 before being sent to the BBS, where possible (UTF-8 supports many more different characters than CP437).

Commands

SET TERMINAL CHARACTER-SET CP437 UTF8
TELNET bbs.example.com

or

SSH username@bbs.example.com

Local terminal configuration

You’ll want a local terminal that has good support for ANSI. Then size it to precisely 80x24 (or sometimes 80x25).

I have found Konsole to work well, but there are certainly others also.

I configured a Konsole BBS profile like this:

  • Appearance category
    • Color scheme & font tab
      • Linux Colors
      • Draw intense colors in bold font unchecked
    • Miscellaneous tab
      • Show hint for terminal size after resizing checked
    • Advanced tab
      • Allow blinking text checked

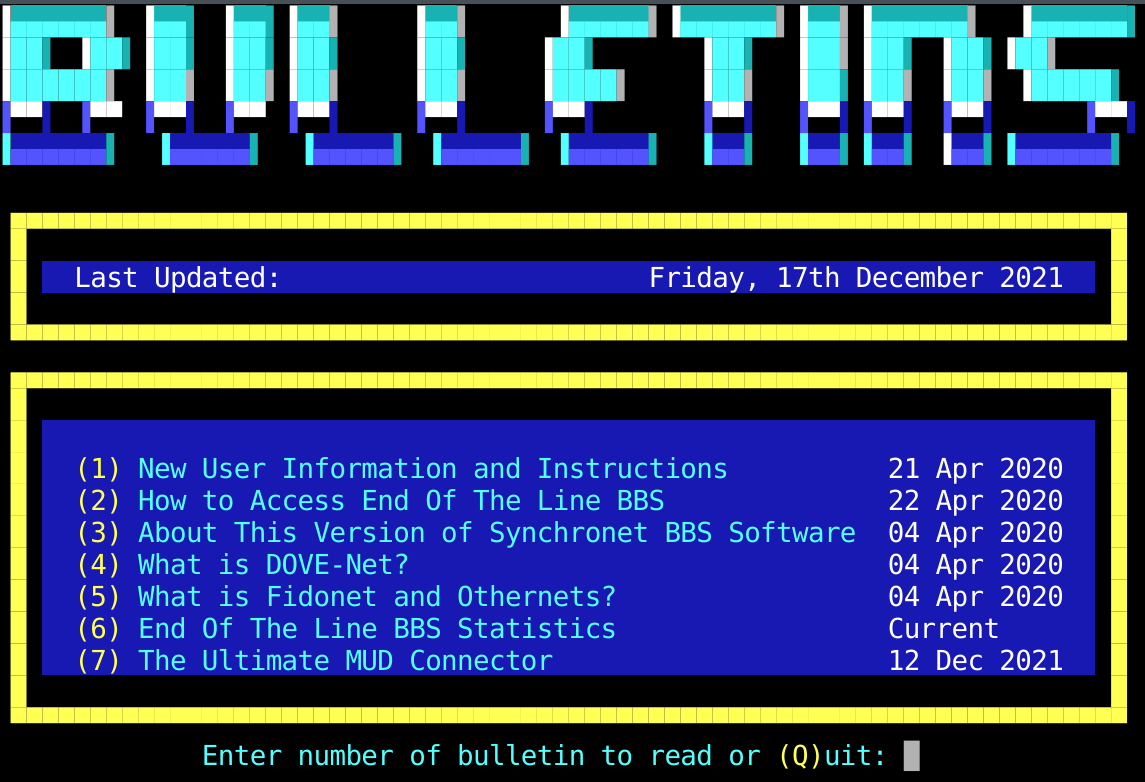

Here’s an example screenshot:

BBS screenshot

Notes and caveats

  • The local terminal must actually be UTF-8 (check locale) for the translated output to render correctly.

  • SHOW TERMINAL displays the current character-set settings.

  • SET TERMINAL CHARACTER-SET ? lists all supported character sets.

  • The combined SET TERMINAL CHARACTER-SET <remote> <local> form is the normal way to configure this. The more granular SET TERMINAL REMOTE-CHARACTER-SET / SET TERMINAL LOCAL-CHARACTER-SET pair also exists if asymmetric behavior is ever needed, such as translating received data but leaving typed keystrokes untouched.
